Shaft Material Selection & Heat Treatment: Industrial vs Automotive
Choosing the right shaft material and heat treatment process is the difference between a shaft that survives years of service and one that fails under load. This guide covers shaft material grades, heat treatment strategies, and the real engineering trade-offs between industrial and automotive applications, so you can make the right call from the start.
Whether you’re specifying an electric motor shaft material for a conveyor system or selecting the best steel for shafts in a high-speed automotive drivetrain, the fundamentals covered here apply directly.
What Is Shaft Material and Why Does It Define Performance?
Shaft material is the steel grade chosen to carry torsional, bending, and axial loads across the shaft’s service life. The wrong shaft material grade leads to premature fatigue cracking, excessive wear at bearing journals, or catastrophic overload failure.
Three variables drive every shaft material decision:
- Static strength, can it survive peak torque without yielding?
- Fatigue resistance, can it endure millions of stress cycles?
- Heat treatment compatibility, can it be hardened to the required shaft hardness without distortion?
Getting all three right requires understanding not just the steel, but the application it’s going into.
Industrial Shafts vs Automotive Shafts: Two Different Failure Modes
Industrial Shaft Applications
Industrial shafts, in rock crushers, conveyors, pumps, and SPMs, fail primarily from overload and shock. A crusher shaft straining under massive static torque needs a tough core that absorbs energy without snapping. Weight is not a constraint; ruggedness is everything.
Design priorities:
- High yield strength to handle start-up torque
- High core toughness to absorb sudden shock loads
- Generous section size is acceptable
Recommended shaft material: 1045 for general use; 4140 or 4340 for heavy-duty.
Automotive Shaft Applications
A car driveshaft rotating at 2,500 RPM accumulates 1 million stress cycles in just 6.5 hours. Automotive shafts fail from high-cycle fatigue, not overload. Weight savings matter because you cannot simply oversize a driveshaft, you need higher specific strength.
Design priorities:
- High endurance limit to survive millions of reversals
- High strength-to-weight ratio
- Clean microstructure to suppress fatigue crack initiation
Recommended shaft material: 8620 (carburized) or 4140 (Q&T) to maximise fatigue life per kilogram.
The Three Core Shaft Material Families
Most shafts you will design or specify fall into one of three material families. Understanding the “personality” of each is essential before selecting a shaft material grade.
1. 1045 / EN8 (Plain Carbon Steel), The Workhorse
Medium-carbon steel (0.45% C) is the most common shaft material in general power transmission. It machines cleanly, is available everywhere in precision ground shafting, and costs less than alloy grades.
Best for: Electric motor shafts, conveyor rollers, light-duty pumps, general automation.
Limitation: Limited hardenability, sections over 60 mm diameter will not harden to the core. Not suitable where deep hardness or high fatigue strength is required.
Property | Value |
Typical Yield Strength | ~310 MPa |
Heat Treatment Options | Induction / Flame harden (surface only) |
Typical Surface Hardness | ~55 HRC (induction) |
2. 4140 / 42CrMo4 (Chromium-Molybdenum Alloy Steel), The All-Rounder
Chromium and molybdenum additions give 4140 deep hardenability and significantly better fatigue resistance than 1045. It is the preferred shaft material steel for applications where 1045 runs out of capability.
A major practical advantage is 4140 Pre-Hardened (PH), supplied at ~28–32 HRC. You machine a shaft that is already strong and tough, eliminating post-machining heat treatment distortion entirely, critical for low-volume or custom shaft work.
Best for: SPM drive axles, high-stress automation shafts, transmission output shafts, heavy-duty conveyors.
Property | Value |
Yield Strength (Q&T) | ~655–900 MPa |
Heat Treatment Options | Through-harden, nitride, induction |
Typical Hardness | 28–38 HRC (Q&T) |
3. 8620 / 20NiCrMo2 (Case-Carburizing Steel), The Case-Hardening Champion
8620 is a low-carbon nickel-chromium-molybdenum alloy. By itself, it is soft, similar to mild steel. That is intentional. It is designed for carburizing, which diffuses carbon into the surface to create a hard case while the core remains ductile and shock-absorbent.
This combination, hard surface, tough core, is essential for gears, integral splines, and shafts exposed to high contact stress. Case-carburized gear hardness of 58–62 HRC surface with a core of 30–45 HRC is the industry standard target for 8620.
Best for: Transmission shafts, gearbox input/output shafts, shafts with integral splines, high-cycle fatigue applications.
Property | Value |
Core Yield Strength | ~350–450 MPa |
Surface Hardness (carburized) | 58–62 HRC |
Core Hardness | 28–38 HRC |
Heat Treatment | Gas carburize + quench (furnace required) |
Shaft Hardness: What the Numbers Actually Mean
Shaft hardness targets vary significantly by application and heat treatment process. Selecting the correct shaft hardness for the surface and core is as important as the steel grade itself.
Application | Target Surface Hardness | Target Core Hardness |
General motor shaft (1045, induction) | 50–55 HRC | As-machined (~20 HRC) |
Heavy-duty alloy shaft (4140, Q&T) | 28–38 HRC (through) | Same (through-hardened) |
Carburized gear/spline shaft (8620) | 58–62 HRC | 30–45 HRC |
Induction-hardened axle (1055/4150H) | 56–62 HRC | Soft core |
Nitrided precision shaft (4140 PH) | 65–70 HRC (compound layer) | 28–32 HRC |
Getting to 58–62 HRC surface hardness on a carburized shaft requires precise furnace atmosphere control and a controlled quench. Decarburization (oxygen in the furnace atmosphere stripping carbon) is the most common failure mode, it leaves soft patches that become fatigue crack initiation sites.

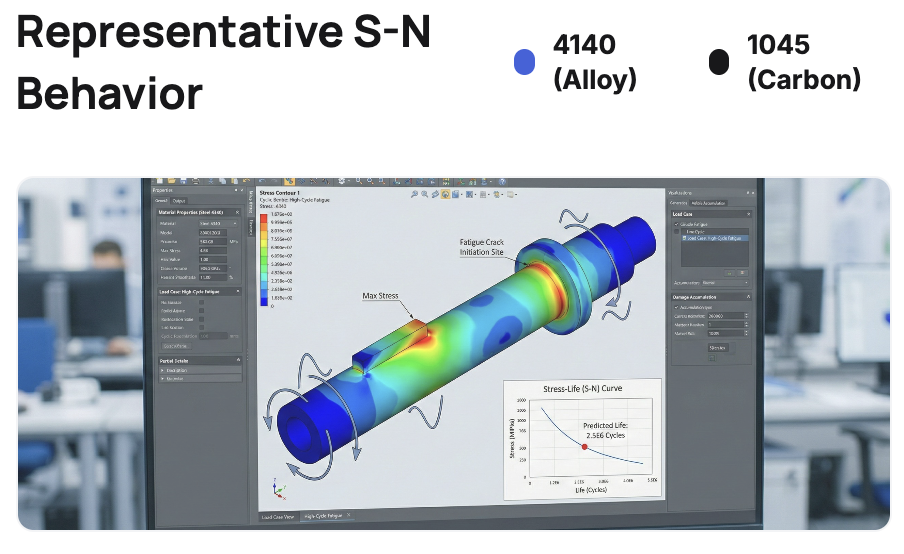

Fatigue: The Silent Killer in High-Speed Shafts
Static yield strength is only half the story. For any rotating shaft, fatigue strength and the endurance limit are the dominant design constraints.
The S-N curve shows stress amplitude versus cycles to failure. 4140 alloy steel maintains significantly higher stress capacity out to 10⁷ cycles than plain 1045. Approximate endurance limits:
- 1045: ~300 MPa
- 4140 (Q&T): ~480 MPa
That 60% improvement in endurance limit is why alloy steel shaft material is mandatory in high-RPM automotive and high-cycle industrial applications, not simply because it is “stronger” in a tensile test.
How Case Depth Affects Fatigue Strength in 8620

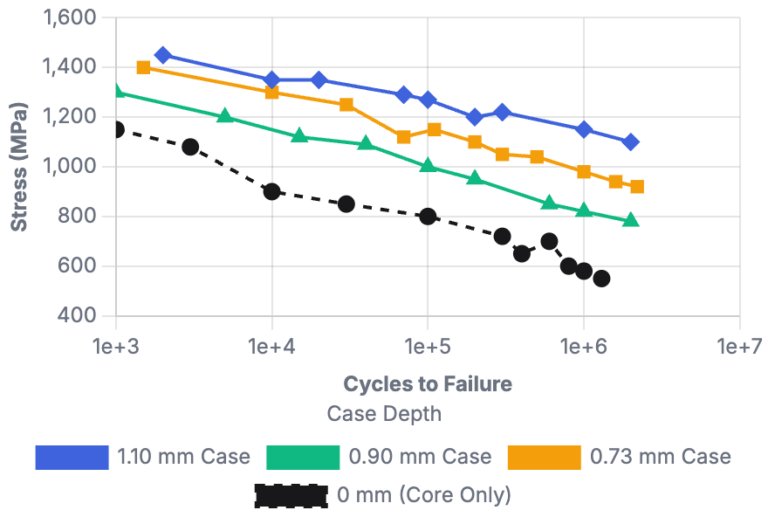

For carburized 8620 shafts, increasing case depth from 0.73 mm to 1.10 mm raises fatigue strength from approximately 840 MPa to 1,140 MPa, a ~36% gain. However, improvement plateaus once relative case depth (depth/diameter ratio) exceeds approximately 0.12. Beyond that threshold, the case becomes too brittle relative to the core, and fatigue strength can actually decrease.

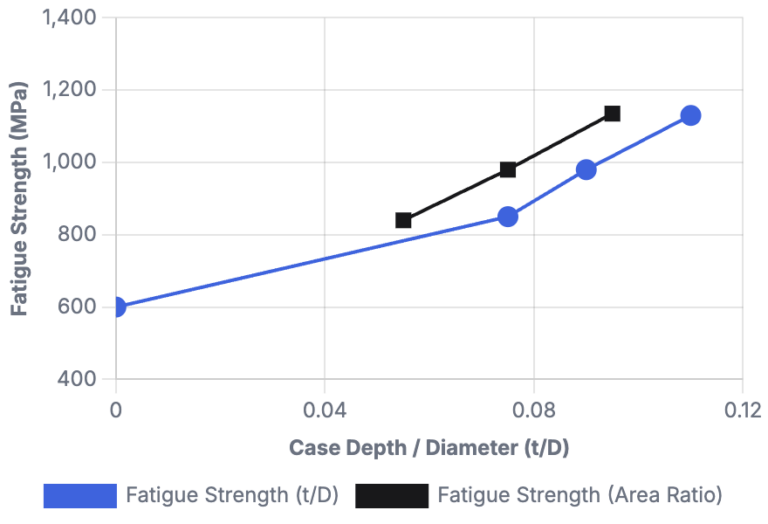

Design rule: For 8620, target case depth at 10–12% of component diameter.
Heat Treatment Processes: Matching the Process to the Steel
Carburizing (Case Hardening)
Best for: Gears, splines, high contact stress shafts (8620, EN36).
The shaft is placed in a carbon-rich furnace atmosphere. Carbon diffuses into the surface over several hours. On quenching, the high-carbon case transforms to hard martensite while the low-carbon core remains tough. Post-carburize grinding is typically required because distortion is unavoidable.
This is the process that produces case-carburized gear hardness of 58–62 HRC surface with a core hardness of 30–45 HRC.
Induction Hardening
Best for: Bearing journals, linear shafts, axle shafts (1045, 4140, 1055).
A copper coil carrying high-frequency AC current induces eddy currents in the shaft surface, rapidly heating the skin to austenitizing temperature before a water quench. The result is a steep hardness gradient with a hard surface and unaffected (tough) core. Distortion is minimal compared to furnace processes, a significant manufacturing advantage.
Quench and Temper (Through-Hardening)
Best for: 4140 and 4340 where uniform through-section strength is needed.
The shaft is austenitized, oil-quenched, then tempered at a controlled temperature to reach the target hardness. Pre-hardened 4140 PH supplied at 28–32 HRC bypasses this step entirely, a key supply chain advantage for prototype and low-volume shafts.
Nitriding
Best for: Precision shafts requiring extreme surface hardness with minimal distortion (4140, Nitralloy grades).
A diffusion process at relatively low temperatures (~520°C) means almost no dimensional change, critical for finish-machined shafts. Produces a very hard compound layer (65–70 HRC equivalent) with excellent fatigue and wear properties. Requires steel with nitride-forming elements (Cr, Mo, Al).
Industry-Standard Shaft Materials: Full Reference
Industrial Shaft Material Grades
Material | Best Use | Heat Treatment |
4140 PH (Pre-Hard) / 42CrMo4 QT | SPM shafts, drive axles, machine and install immediately | Supplied 28–32 HRC. No post-machining HT required. Can be nitrided. |
1045 / EN8 / C45 | Electric motor shaft material, conveyor rollers, pulleys | Use as-is or induction harden journals (~55 HRC). Risk of distortion with bulk quench. |
4140 (Annealed) | Heavy-duty machinery requiring extensive pre-HT machining | Must Q&T after rough machining to reach 28–35 HRC. Grind after HT. |
EN36 / EN353 (Ni-Cr) | Gearbox shafts, mining, crusher applications | Carburize + quench essential. Surface ~60 HRC, tough core. High material cost. |
EN8D (080M40) | Hydraulic rams, linear guides | Excellent induction hardening response (~50–55 HRC). Often hard chrome plated. |
S55C / 1055 (High Carbon) | Linear motion shafts on ball bushings | Induction harden to ~60 HRC. Higher hardness than 1045 due to extra carbon. |
SS304 / SS316 | Food processing, marine, wash-down environments | Cannot be hardened. Use polymer bushings for sliding contact. Galls against itself. |
1018 Mild Steel | Spacers, tie-rods, low-load mounting shafts | Cannot through-harden. Too soft for bearing journals. |
1215 / 12L14 | Screw machine stock only | Do NOT use for shafts. Brittle due to sulfur/lead additions. |
Automotive & Gear Shaft Material Grades
Carburized (Case-Hardened) Steels
Material | EN / DIN Equivalent | Heat Treatment | Surface / Core Hardness | Application |
8620H | 20NiCrMo2-2 | Gas carburize | 58–62 HRC / 28–38 HRC, ECD 0.8–1.5 mm | Heavy-duty transmission shafts. Industry standard for toughness. |
5115 (16MnCr5) | 16MnCr5 | Gas carburize | 58–62 HRC / 30–45 HRC, ECD 0.5–1.0 mm | European-standard gearbox shafts. Excellent hardenability for cost. |
Induction-Hardened Steels
Material | EN / DIN Equivalent | Heat Treatment | Hardness | Application |
1055 / 1060 | C55 / C60 | Induction scan | 56–62 HRC surface | Axle shafts, CV joints. Excellent induction response. |
4150H | 50CrMo4 | Induction or Q&T | 58–62 HRC surface | Heavy truck axle shafts. Alloy content allows deeper hardening. |
Through-Hardened Alloy Steels
Material | EN / DIN Equivalent | Heat Treatment | Hardness | Application |
4140 | 42CrMo4 | Quench & temper | 30–38 HRC | General-purpose transmission shafts. Most versatile shaft material steel. |
4130 | 25CrMo4 | Quench & temper | 26–32 HRC | Tubular and propeller shafts. Good weldability. |
Special-Purpose Shaft Materials
Electric Motor Shaft Material
The standard electric motor shaft material is 1045 (C45/EN8) in the normalised or induction-hardened condition. For small fractional-horsepower motors, the shaft often runs as-normalised at ~20 HRC. For larger motors with interference-fit pulleys or couplings, induction hardening of the journal and keyway area to 50–55 HRC significantly extends service life.
A synchronous motor shaft is made of medium-carbon steel (typically 1045 or 4140), chosen for its machinability, dimensional stability, and compatibility with induction hardening of critical surfaces.
For high-speed motors operating above 3,000 RPM, 4140 PH is increasingly specified because its higher endurance limit (~480 MPa vs ~300 MPa for 1045) addresses fatigue-driven failure at keyways and shoulders.
High Strength Cold Rolling Shafts
For linear motion applications, ball bushing guides, actuator rods, and Thomson-style shafting, the steel is typically high strength cold rolling shaft stock made from 1566 (high-manganese spring steel) or case-hardened 8620. Cold rolling work-hardens the surface and introduces compressive residual stresses that improve fatigue resistance. These shafts are often induction hardened to 58–62 HRC before precision grinding to h6 tolerance.
Electric Motor Shaft Material
The standard electric motor shaft material is 1045 (C45/EN8) in the normalised or induction-hardened condition. For small fractional-horsepower motors, the shaft often runs as-normalised at ~20 HRC. For larger motors with interference-fit pulleys or couplings, induction hardening of the journal and keyway area to 50–55 HRC significantly extends service life.
A synchronous motor shaft is made of medium-carbon steel (typically 1045 or 4140), chosen for its machinability, dimensional stability, and compatibility with induction hardening of critical surfaces.
For high-speed motors operating above 3,000 RPM, 4140 PH is increasingly specified because its higher endurance limit (~480 MPa vs ~300 MPa for 1045) addresses fatigue-driven failure at keyways and shoulders.
High Strength Cold Rolling Shafts
For linear motion applications, ball bushing guides, actuator rods, and Thomson-style shafting, the steel is typically high strength cold rolling shaft stock made from 1566 (high-manganese spring steel) or case-hardened 8620. Cold rolling work-hardens the surface and introduces compressive residual stresses that improve fatigue resistance. These shafts are often induction hardened to 58–62 HRC before precision grinding to h6 tolerance.
Supply Chain Risks: What Goes Wrong in Heat Treatment
Selecting the right material and specifying the right process is only part of the job. Supply chain failures are common:
Missed case depth, carburizing time or atmosphere carbon potential was insufficient. Result: premature surface pitting and spalling under contact stress.
Distortion, shaft achieved target hardness but warped during quench. Result: scrap after post-HT grinding, or worse, a shaft that passes inspection but runs out of true.
Decarburization / soft spots, poor furnace atmosphere control strips carbon from the surface during heating. Result: soft patches that become fatigue crack initiation sites at the worst possible location.
Wrong grade supplied, without mill test certificates (MTC) and incoming hardness checks, a 1045 shaft can be substituted for 4140 PH without obvious physical difference. Verify composition via MTC on every batch.
How to Choose the Right Shaft Material: Decision Summary
Conclusion
Shaft material selection is not a catalogue lookup, it is a decision that must balance shaft material grade, required shaft hardness, heat treatment process, and the dominant failure mode in your application.
For most industrial shafts, 4140 PH or 1045 cover the majority of cases. Where high-cycle fatigue, integral splines, or contact stress enter the picture, the best steel for shafts becomes 8620 carburized, delivering 58–62 HRC surface hardness over a tough 30–45 HRC core that resists shock. For electric motor shaft material in standard industrial drives, 1045 induction-hardened at bearing journals remains the proven, cost-effective choice.
Regardless of shaft material selected, always verify composition via mill test certificates, specify heat treatment parameters clearly (not just hardness targets), and confirm case depth and distortion tolerances before committing to a manufacturing route.
Ready to Build Your Product?
Let’s turn your idea into a production-ready product engineered for success.
For most industrial applications, 4140 Pre-Hardened (PH) is the best overall shaft material. Supplied at 28–32 HRC, it eliminates post-machining heat treatment, machines cleanly, and delivers yield strength around 900 MPa with good toughness. For lighter-duty applications, 1045 remains the most common and cost-effective choice.
Standard electric motor shaft material is 1045 medium-carbon steel in the normalised or induction-hardened condition. Higher-speed or higher-load motors use 4140 for its superior fatigue resistance and deeper hardenability.
Shaft hardness depends on application. General motor shafts typically run at 20–25 HRC (as-normalised) or 50–55 HRC on induction-hardened journals. Carburized gear and spline shafts target 58–62 HRC surface with 30–45 HRC core. Through-hardened alloy shafts for general power transmission typically fall in the 28–38 HRC range.
Carburizing diffuses carbon into a low-carbon steel surface over several hours in a furnace, producing a hard case (58–62 HRC) over a tough core, essential for gears and splines. Induction hardening rapidly heats only the surface of medium/high-carbon steel using electromagnetic induction, then quenches, faster, less distortion, but requires adequate carbon already in the steel.
Automotive shafts prioritise fatigue life and specific strength, typical materials are 8620 (carburized) and 4140 (Q&T). Industrial shafts prioritise static strength and toughness, 1045, 4140 PH, and EN36 are the standard shaft materials.
A synchronous motor shaft is made of medium-carbon steel, most commonly 1045 or 4140, selected for dimensional stability, machinability, and compatibility with induction hardening of bearing seats and coupling areas.
Case-carburized gear hardness targets 58–62 HRC on the surface with a core of 30–45 HRC for standard grades such as 8620H and 16MnCr5. This combination provides wear resistance at the contact surface and toughness in the core to absorb shock loads.
